HNZXIB 1L Laboratory Chemical Simple Stainless Steel High Pressure Reactor Autoclave，Autoclave Reactor High Pressure Reactor,Lab Pressure Vessel Pressure Vessel Lab

Price:
(as of – Details)

Product description

CF stainless steel simple autoclave is a simple high pressure reactor produced according to customer’s requirements according to the functional characteristics of high pressure reactor. It can be placed in electric blast drying oven, constant temperature oil/water bath, low temperature tank and other environment, stainless steel material, can be configured communication terminals with computer , and can be customized volume according to customer needs.

Simple Stainless Steel High Pressure Reactor

Reaction vessel stationary ring and stationary ring base create the perfect seal with no need for o-rings,according to their structural features,contact stress increased with increasing working pressure,sealing performance is better under the high pressure.

Simple Stainless Steel High Pressure Reactor

The reaction kettle equipped with safety valve,that adopted blasting diaphragm,blasting numerical error is small,instantly exhaust gas fast,safe and reliable.Each valve adopts needle valve,reciprocating closed form,seal is reliable and durable.All safety valves with reasonable installation and releasing unblocked.

Simple Stainless Steel High Pressure Reactor

Seismic pressure gauges for the environment places severe vibration,the pulse of media tolerance,and the impact of a sudden unloading,gauges clear instructions and stability,with good vibration resistance.

Simple Stainless Steel High Pressure Reactor

Static Seal-No Leakage

Safety Valve

Pressure Gauges

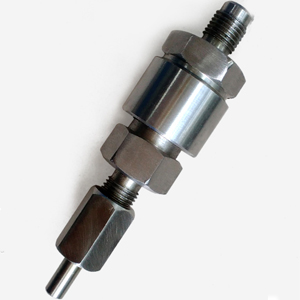

Needle Valve

Use and precautions

The temperature of external heating is recommended not to exceed 350℃, the heating rate is ≤ 5℃/min, the temperature can be controlled by PID temperature control system, the cooling rate is ≤5℃/min. The safety pressure is 22 MPa.Tighten the screws symmetrically after feeding.When the reaction is completed, the kettle body is naturally cooled to room temperature,and then open the cover.Do not fill more than 80% in the kettle.Remark:Big capacity can be customized according to customers’ demands.

Is Discontinued By Manufacturer ‏ : ‎ No
Item Weight ‏ : ‎ 61.73 Pounds
Item model number ‏ : ‎ CF-1
Date First Available ‏ : ‎ November 5, 2018
Manufacturer ‏ : ‎ Henan Zhuoxian Import and Export Co., Ltd.
ASIN ‏ : ‎ B07K7834D6
Best Sellers Rank: #582,418 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #96 in Lab Autoclaves
Customer Reviews: 5.0 5.0 out of 5 stars 1 rating var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
[Maximum pressure of Labfeng pressure digestion tank]: 22MPa, maximum temperature resistance: 350℃, heating rate ≤5℃/min, the reactor fixing ring and the fixing ring base form a seal, no O-ring is required.
[Good sealing effect]: The main seal of the autoclave adopts gasket line contact or conical surface and annular surface contact, and the two are pressed against each other by tightening the main nut to achieve a good sealing effect.
[304 stainless steel material]: The autoclave body and autoclave cover are made of high-quality stainless steel. 316 stainless steel can be customized; Other capacity can be customized according to your requirements.
[Easy installation, Multi-applicability]: Simple operation; it can be placed in an electric blast drying oven, a constant temperature oil/water bath, a low temperature bath and other environments, and can be equipped with a computer communication terminal.
[Wooden box packaging]: It uses a sturdy and durable wooden box for safe packaging to effectively prevent damage during transportation. which is very suitable.
