Product description
Genmitsu 4040-PRO – Your Best Value CNC Machine
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Genmitsu 4040-PRO CNC Router Machine Merchant Video
Boost your productivity with enhanced milling speed and improved stability. Ideal for CNC novices, hobbyists, or small business owners seeking professional-grade quality for commercial applications, this option stands out as a superior selection.
Enhanced Stability, Accuracy: Achieving Higher Performance
Screw drives provide better positioning accuracy compared to belt drives, as they are less affected by elastic deformation and swing clearance. Additionally, screw drives are easier to maintain during use, eliminating the need for tedious belt leveling and offering greater durability.

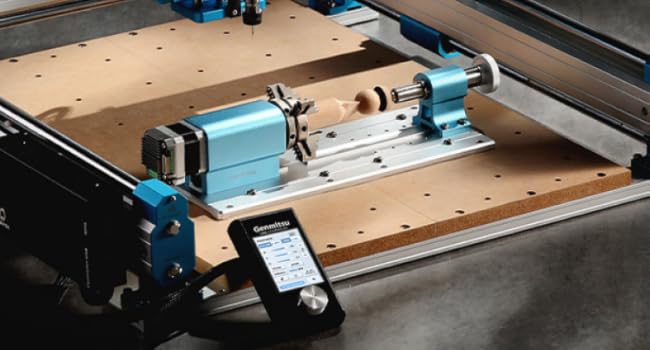

4th Axis Module Supported
4th Axis rotary module realizes the A axis is used in conjunction with the X, Y, and Z axes to create more complex shapes and contours in a workpiece. While a false 4th-axis system that utilizes Y-axis or X-axis movement to interact on the top centerline of the object cannot produce complex models.

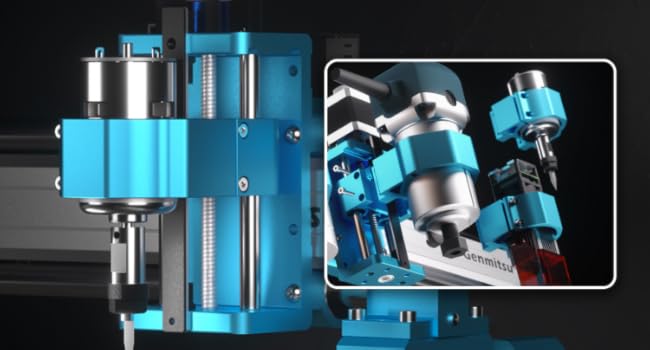

Higher & More Flexible Z-Axis
Adding more screw holes on the non-all-in-one Z-axis carriage allows you to install the larger spindle higher for extra overfeed height. The new spindle mount exchange solution makes the spindle mount exchange easier and ensures the perpendicularity of the installed spindle as well.

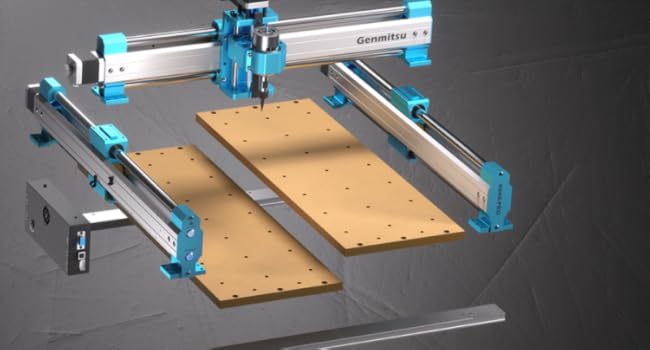

15-Min Frame Assembly
All main parts are pre-assembled and it just takes about 15 minutes to finish the whole machine assembly. Adding more grooves and locating pins on the main assembly parts will help you to locate the parts, avoid inaccurate alignment, and makes assembly easier.

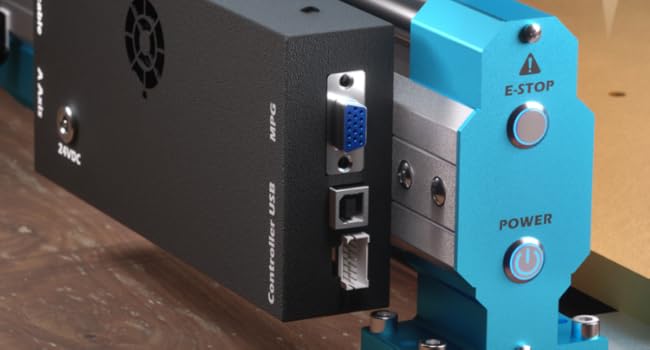

Redesigned Control Board
The control board supports adding a laser module, air assistance pump, offline controller, MPG, and 4th axis. The extra 65mm spindle mount is also available. You could upgrade the machine easily based on your needs. (All these accessories need to order separately)
Specification Comparison
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.1 out of 5 stars 385
4.0 out of 5 stars 91
4.2 out of 5 stars 153
4.1 out of 5 stars 385
4.1 out of 5 stars 385
Price
$609.00$609.00
$381.65$381.65
$1,399.00$1,399.00
$609.00$609.00
$609.00$609.00
XY Axis Effective Working Area
15.7 x 15.7 inch
15.7 x 15.7 inch
15.7 x 11.8 inch
15.7 x 15.7 inch
15.7 x 15.0 inch
Z Axis Effective Working Range
3.1 inch
3.1 inch
4.3 inch
2.4 inch
2.2 inch
Body Material
All Aluminum
All Aluminum
All Aluminum
All Aluminum
Aluminum & Acrylic
Drive System
Lead Screw+ Dual Linear Shafts
Belt & Lead Screw
C Beam Structure & Ballscrew
Belt & Linear Rail
Belt & Lead Screw
Stepper Motors
NEMA 17
NEMA 17
NEMA 23 (Closed-Loop Motor)
NEMA 17
NEMA 17
Spindle Motor
75W
75W
300W
60W
60W
4 Axis Support
✔
✔
✔
✘
✘
MPG Support
✔
✔
✘
✘
✘
Secure Locking Feet
✔
✘
✘
✘
✘
Compatible Accessories
XZ Axis Module Kit
Expand the capabilities of your 4040-PRO to 4040-PRO MAX with this next-generation XZ axis module designed for improved production efficiency and precision.
4th Axis Rotary Module Kit
The 4th Axis Rotary Module Kit is a drop in upgrade that enables your 4040-PRO CNC machine to carve from different angles and positions or with the right software full rotary carving.

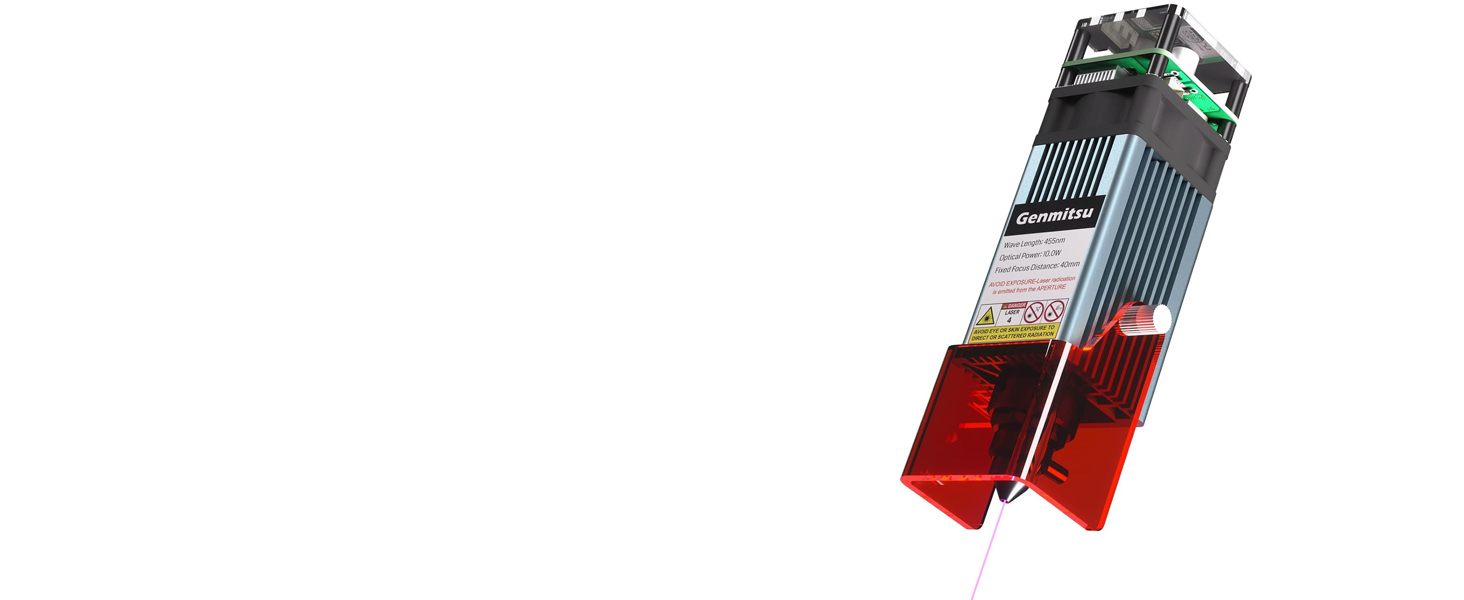

10W Compressed Spot Laser Module
Adopting a laser spot compression technology, this new laser module has 10 W continuous output power and a focal spot of 0.08mm x 0.05mm, allowing for a leap in power and accuracy.
Dust Shoe
This dust shoe is made of high-quality transparent ABS . The transparent design helps you keep an eye on your operations. Keep your machine and work area clean while cutting, drilling, and carving.

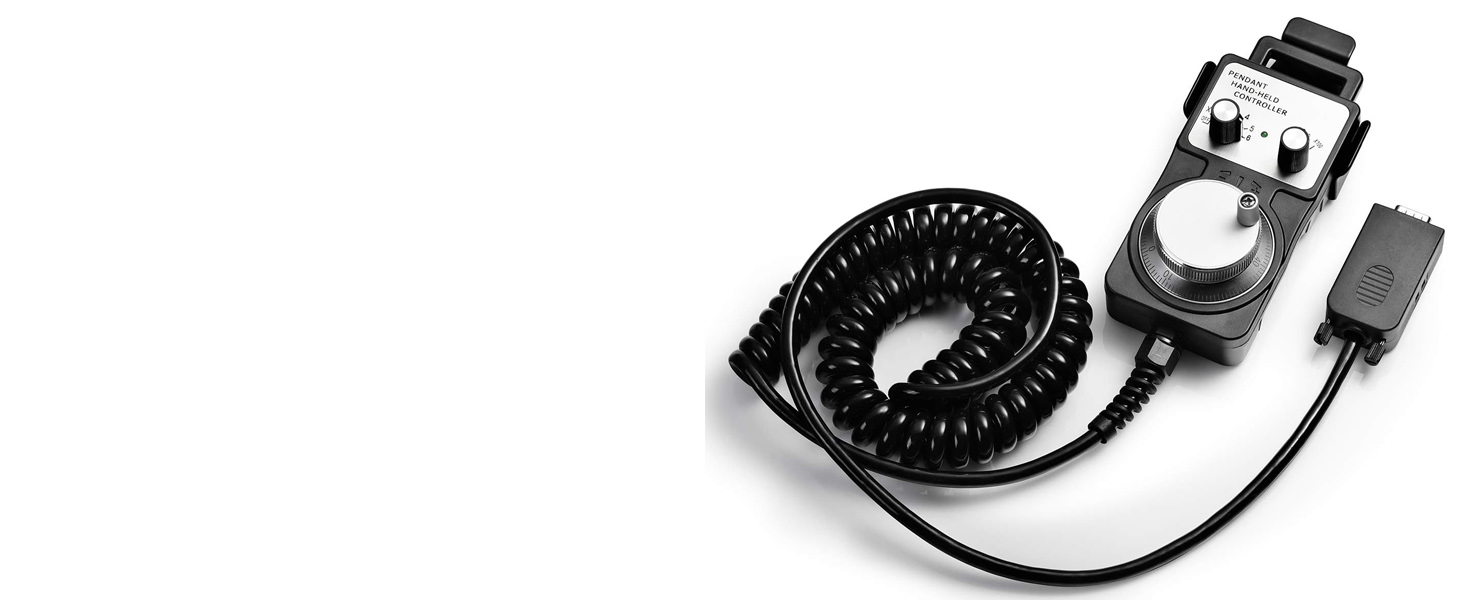

MPG Handwheel Controller
This controller can manually control the XYZ-Axis to run. The hand wheel is made of metal and 100PPR high-quality encoder, durable and simple to operate.
Offline Controller
Designed exclusively for use with the Genmitsu 4040-PRO: Maximize the potential of your Genmitsu 4040 Pro with this specially designed control module.
Including all parts to extend 4040-PRO to X600mm x Y400mm: 1 x 4040 CNC router kit; 1 x threaded inserts 2040 MDF spoilboard; 1 x aluminum X-Axis extension profile kit
Structure Stabilit: Stability is enhanced with a new steel HSS frame. Each axis features two16mm Steel HSS linear tubes , lead screw motion drivers, dual Y-axis rails, and a all metal frame. The Z-axis utilizes linear rails instead of rods and T8 lead screws.
Upgraded Control Box and Mainboard: The upgraded control box features essential functions like emergency stop and home buttons. Its metal casing is dust-proof and easy to maintain. It includes a powerful and quiet Toshiba TB6S109 driver with a 32-bit chip, along with multifunctional ports for air assist pump and MPG.
Compatibility Upgrade: The 4040-PRO CNC machine is supplied with 42mm and 52mm spindle mounts, compatible with original spindles, 300W spindles, and our laser module. Additional 65mm (B0BRZSY475) and 69mm (B0BRZSVVK3) spindle mounts are also available for separate purchase.
Easy Assembly: Main parts are pre-assembled, enabling setup in about 15 minutes. The spoilboard consists of two replaceable MDF boards, so you only need to swap the damaged one instead of the entire spoilboard.
