Product Description
Cinetreak C2 Series 5*Channel Video Switcher With 5.5‘’ Screen（NDI）
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. C2s video mixer Merchant Video
5.5‘’ Professional Multi-Input Video Switcher with Advanced PTZ Control,Recording and Flexible Output!
5.5‘’ High-precision screen
5.5” high-precision screen, real-time monitoring of multi-channel live broadcast status.
Multi- HDMI or SDI Inputs
C2 has 4 HDMI, C2S has 4HDMI &4SDI inputs.
Customized AUX Outputs
Users can customize PGM & AUX output interfaces to display any channel feed or multi-window preview.
High Quality Recording & Fast Playback
Supports USB/SD card for HD video recording, quick playback via switcher, with fast forward/rewind.
PTZ Camera Control & Preset Positions
Supports VISCA IP control for up to 4 PTZ cameras, with each camera supporting 7 preset positions.
1 Build-In Screen
2 Multi-Inputs
3 Custom AUX Outputs
4 Recording & Playback
5 PTZ Camera Control

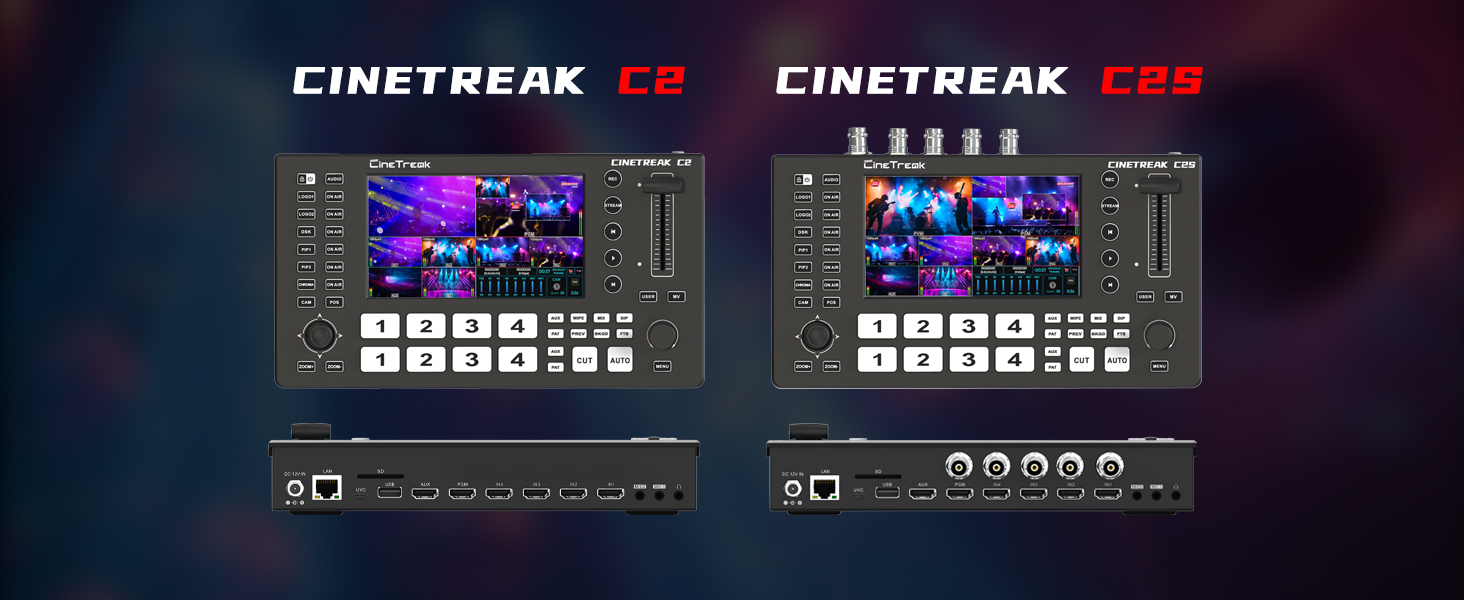

CineTreak C2（4HDMI） & CineTreak C2S （4HDMI &4SDI）
C2 features 4 HDMI inputs, ideal for streamlined live productions. C2S upgrades with 4 HDMI + 4 SDI inputs, built-in display, PTZ control, NDI input, and dual RTMP streaming — built for professional, multi-source broadcast environments.
1
2
3
4
5
CineTreak C2 Series Cutting-Edge New Features Revealed 1
NDI Updatable
Supports NDI HX device as extra input; users can activate the NDI license through the official website.

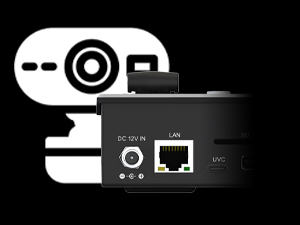

Web-Camera Input
Supports using a webcam as an additional input source, with selectable input resolution. Compatible with devices like the DJI Pocket 3.
RTMP to 2 platforms
Users can configure the RTMP stream URLs on the control software and stream to two platforms simultaneously
Super Source
Configure up to four Picture-in-Picture (PiP) windows in both PVW (Preview) &PGM (Program) modes, with flexible positioning options for each window.
CineTreak C2 Series Cutting-Edge New Features Revealed 2
Horizontal & Vertical Mode
Supports both preview and live streaming modes in 9:16 or 16:9 formats, ensuring compatibility with different platforms
“AUX” Media Channel
AUX serves as a media and fifth input channel, supporting playback, NDI, network cameras, and multiple video sources with device memory.
S-SRC Background
Allows users to customize and import any virtual background image to create a personalized virtual studio.
Mobile Control & Tally light
Controls switcher via phone, PC, or iPad on the same LAN host software enables phone as tally light.
Cinetreak Best Seller Comparison
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.8 out of 5 stars 5
4.8 out of 5 stars 5
5.0 out of 5 stars 1
4.0 out of 5 stars 16
4.7 out of 5 stars 9
5.0 out of 5 stars 1
Price
$699.00$699.00
$599.00$599.00
$839.00$839.00
$417.04$417.04
$299.00$299.00
$350.55$350.55
Live Video Mode
Horizontal & Vertical
Horizontal & Vertical
Horizontal & Vertical
Horizontal
Horizontal & Vertical
Horizontal & Vertical
Build-in Screen
5.5 inch
5.5 inch
10 inch
5.5 inch
No
No
AUX(Media )Input
✔
✔
✔
✘
✔
✔
NDI Updatable
✔
✔
✔
✘
✔
✔
Webcam input
✔
✔
✔
✘
✔
✔
Does all CineTreak C2 series support AUX (Media)input and Webcamera input ?
The CineTreak C2 series switchers all support an additional AUX software signal input and Web camera functionality.
Does all CineTreak C2 series Support AUX and PGM output ports customized ?
The entire CineTreak C2 series supports customizable AUX and PGM channels, allowing users to freely select outputs.
Does NDI require an additional purchase, and how many NDI input sources are supported?
NDI requires a separate purchase from our official website. The CineTreak C2 series supports one NDI input source.
Can the CineTreak C2 series simultaneously live stream and record? Is the recording frame rate & adjustable?
You can record while live streaming, with adjustable recording formats ,Bitrate and frame rates.”
How many PTZ cameras can be controlled, and how many camera position presets are supported?
4 PTZ Cameras can be controlled by video switcher ,and each supports 7 Preset Positions.

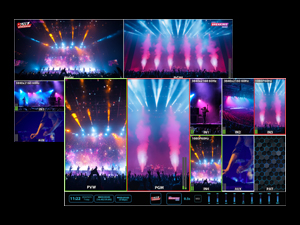

【5.5inch Screen & Meeting Mode】The C2 and C2S feature a wide gamma 5.5-inch screen for precise color monitoring, MV Mode Display for managing multiple inputs, and a Meeting Mode to display and output up to four video streams simultaneously, perfect for conferences, live events, and multi-source productions.
【Rich Connection Ports】C2 has up to 4HDMI inputs and one AUX channel, which can access the media library. Features one PGM output and one AUX output, with both AUX and PGM capable of outputting any video channel or a clean PGM source. Equipped with 2 USB ports,a UVC 3.0 ,an RJ45 port, and HDMI 1 and HDMI 2 supporting 4K input for exceptional visual quality.
【Down & Pull Stream】Users can seamlessly integrate any unencrypted video source into the stream switcher, enabling real-time output through the switcher. The RTMPS protocol allows simultaneous live broadcasting to two destinations, ensuring efficient and versatile.
【PTZ Camera Control & Advanced Host Computer】Features built-in PTZ control for up to 4 cameras via the VISCA protocol, with support for wireless IP control from a PC or smartphone. Users can access the host system through the device’s IP address to remotely manage the mixer in real time, including enabling the tally function for streamlined production control.
【REC, Playback & Customizable PIP】Enables recording of high-bitrate Full HD video files with instant playback functionality. Supports two picture-in-picture (PIP) layouts, featuring adjustable cropping and resizing options to accommodate diverse creative and production requirements.
